Advanced Analytical Characterization of Polymeric Excipients

Polymeric excipients play a critical role in modern therapeutic systems being a fundamental partin advanced and highly efficient controlled release platforms such as polymer nanoparticles (PNPs), Polymer-drug conjugates, and advanced injectable formulations. Polymers are not just a carrier, they are key materials that can define the therapeutic outcome.

Physico-chemical attributes such as molecular weight distribution, polydispersity, end-group fidelity architecture and composition directly influence:

• Drug release kinetics

• Stability of drug delivery systems

• Biodistribution profile

• Processability

• Safety profile

Unlike small molecules, polymers cannot be described by a single structure. Their functionality depends on distributions, architectures, conformations and compositions that require an exhaustive and advanced analytical characterization to properly understand and control polymer behavior.

As regulatory expectations evolve for complex excipients and synthetic polymers, deeper structural and physicochemical analysis is increasingly expected within CMC strategies and pharmacopeial frameworks.

In advanced drug delivery, polymer characterization is not just quality control, it is risk management, reproducibility assurance, and performance optimization.

In this article, we outline the essential analytical pillars required to ensure high-quality polymeric excipients for therapeutic applications.

1. Identity & Chemical Purity of Polymeric Excipients

For polymeric excipients used in therapeutic applications, identity and chemical purity are not just quality parameters, they are elements of a broader risk-based analytical strategy. In advanced drug delivery systems like parenteral formulations, long-acting injectables or nanoparticle platforms, polymers directly influence safety, stability, and in vivo potency.

The first step in polymer characterization is to confirm that the expected chemical composition has been achieved (e.g., initiator/monomer or monomer/monomer ratios, endgroup capping, or degree of functionalization). The next step is to determine purity by assessing the critical impurity profile, including residual solvents, unreacted monomer, and undesired oligomers—especially those that may present toxicity concerns.

A well defined composition together with a controlled and well understood impurity profile are essential to:

• Support batch-to-batch consistency

• Reduce scale-up variability

• Facilitate regulatory alignment in CMC documentation

• Protect long-term product performance



1.1 Polymer Identity

Polymer identity is a deeper parameter than most people think and as well as other parameters that we will check along the article is multivariable including:

• Chemical backbone verification

• Copolymer composition (monomer ratio when working with copolymers)

• Stereochemistry (where applicable)

• End-group structure

Techniques commonly used for polymer identity testing include:

• NMR (including quantitative NMR) for compositional (notably for copolymers) and end-group analysis.

• FTIR spectroscopy for backbone confirmation.

• NMR (including quantitative NMR) for compositional and end-group analysis

• HPLC (by retention time for complex or multi-component systems).

For synthetic polymers and copolymers, advanced analytical techniques are increasingly integrated into pharmacopeial strategies to define identity and composition more precisely.

Clear structural definition reduces variability risk during scale-up and supports regulatory clarity in CMC documentation.

1.2 Process-Related Impurities & Critical Quality Parameters

Beyond structural identity, polymeric excipients must be controlled for process-related impurities and physicochemical parameters that directly impact safety, stability, and regulatory compliance which is even more important  in parenteral or long-acting therapeutic systems.

The key categories and their analytical control strategies are summarized below:

Control of these parameters supports batch consistency, process reproducibility, and long-term product performance in advanced drug delivery applications.

2.Molecular Weight & Dispersity: The Core Performance Parameter

In the context of polymer based materials or drugs ,molecular weight is not only  a check to fill on a certificate of analysis, it is a deeply related to the performance and influences how the excipient behaves during processing, formulation, and ultimately in vivo.

Molecular weight distribution directly influences:

• Drug release kinetics
• Degradation rate (especially for biodegradable polymers)
• Mechanical properties
• Viscosity and processability
• Nanoparticle formation behavior
• Biodistribution

Unlike small molecules, polymers exist as distributions rather than single defined entities. Therefore, both average molecular weight (Mn, Mw) and dispersity (Đ or Mw/Mn) must be carefully characterized and controlled.

2.1 Molecular Weight Distribution (MWD)

A polymer batch is fundamentally defined by its molecular weight distribution (MWD) known as  the relative abundance of polymer chains across different molecular weights.

Two polymers may share the same weight-average molecular weight (Mw), yet behave very differently if their distribution shapes differ. Variations in MWD can influence drug release profiles, degradation kinetics, rheological properties, and even nanoparticle size distribution in advanced delivery systems. For therapeutic applications, controlling and understanding MWD is therefore essential for reproducibility and performance consistency.

2.2 GPC/SEC: The Foundational Technique

Gel Permeation Chromatography (GPC), also known as Size Exclusion Chromatography (SEC), remains the foundational method for polymer molecular weight analysis.

GPC/SEC provides:

• Determination of molecular weight averages (Mn, Mw, Mz)

• Calculation of Dispersity (Đ)

• Visualization of the full molecular weight distribution

• Detection of low molecular weight species and high molecular weight aggregates

This technique is widely applied across pharmaceutical polymer systems, including PEG derivatives, polypeptides, polyesters, and functional copolymers.

However, conventional GPC relies on calibration standards, meaning molecular weight values are relative rather than absolute. This distinction becomes particularly important for complex or regulatory-sensitive polymeric excipients. In order to perform this absolute determination, SEC-MALS becomes a key player.

2.3 Absolute Molecular Weight: Why SEC–MALS Matters (in collaboration with Tosoh Biosciences)

SEC–MALS (Size Exclusion Chromatography coupled with Multi-Angle Light Scattering) enables absolute molecular weight determination based on first principles of light scattering. Unlike relative methods, it does not require structural similarity to calibration standards.

By combining chromatographic separation with light scattering detection, SEC–MALS provides simultaneous measurement of:

• Absolute molecular weight (Mw)
• Molecular weight distribution
• Radius of gyration (Rg)
• Detection of aggregates and high-MW species
• Structural insight into polymer architecture

This is particularly critical for synthetic biodegradable polymers like Polysarcosine or PG-Diol, PEG derivatives, functionalized copolymers, and materials used in nanoparticle systems.

2.4 Addressing the Technical Challenges of Polymer SEC–MALS

SEC–MALS is powerful, but demanding, specially for polymeric systems that often present analytical challenges such as:

• Weak light scattering signals in low molecular weight materials
• Sensitivity to dn/dc values
• Band broadening due to system dead volume
• Aggregation or multimodal distributions
• Solvent compatibility constraints

Modern integrated SEC–MALS configurations address these limitations through:

• Optimized low dead-volume flow paths
• Strategically selected scattering angles (low, mid, and high angles)
• Improved optical stability
• Enhanced signal-to-noise performance

Rather than relying on a high number of scattering angles, modern systems focus on optimized angle selection and improved detector sensitivity, enabling accurate molecular weight determination and reliable size analysis across a broad molecular range.

2.5 Why Molecular Weight Control Is Critical

In therapeutic polymer systems:

• Higher Mw often correlates with slower degradation
• Narrower dispersity improves predictability and reduce side effects
• Hydrodinamic radius in aqueous solution (essential for biodistribution profile)
• Presence of low molecular weight species may accelerate hydrolysis
• High molecular weight tails can affect injectability and processing

Batch-to-batch variability in molecular weight is one of the most common root causes of performance changes in polymer-based formulations.

Therefore, molecular weight characterization is not simply analytical data, it is a core element of formulation control and risk mitigation.

3. End-Group Analysis & Functionalization Degree

Beyond polymer molecular weight distribution, end-group fidelity is a key performance indicator for a well-controlled polymerization and directly influence further, reactivity, conjugation efficiency, and overall formulation performance.

Even minor variations in end-group concentration can alter nanoparticle surface charge, self-assembly behavior and safety profile. For polymers designed as reactive platforms, rather than passive carriers, structural precision at the chain ends becomes a critical quality attribute.

Given its analytical complexity and its direct impact on biological performance, end-group analysis is a topic that can be treated as a separated article by its own. Here we will outline the key parameters and its importance but we will leave the topic open for future articles if our audience wants to know more 

3.1 Functionalization as a Critical Quality Attribute

In advanced delivery systems, polymers are frequently functionalized for drug conjugation, ligand attachment, surface engineering, or crosslinking. The degree of functionalization must therefore be analytically verified to ensure:

• Controlled percentage of active groups

• Reactivity retention after processing

• Stability during storage

• Batch-to-batch reproducibility

Incomplete or inconsistent functionalization can translate into altered nanoparticle surface properties, reduced targeting efficiency, or variability in drug loading.

As polymeric excipients evolve toward greater structural complexity, deeper end-group characterization aligns with regulatory expectations and supports definition of critical quality attributes (CQAs), comparability assessments, and risk-based CMC strategies

Analytical Depth Enables Therapeutic Reliability

In advanced therapeutic systems, polymeric excipients are not passive formulation components, they are structural and functional drivers of performance.

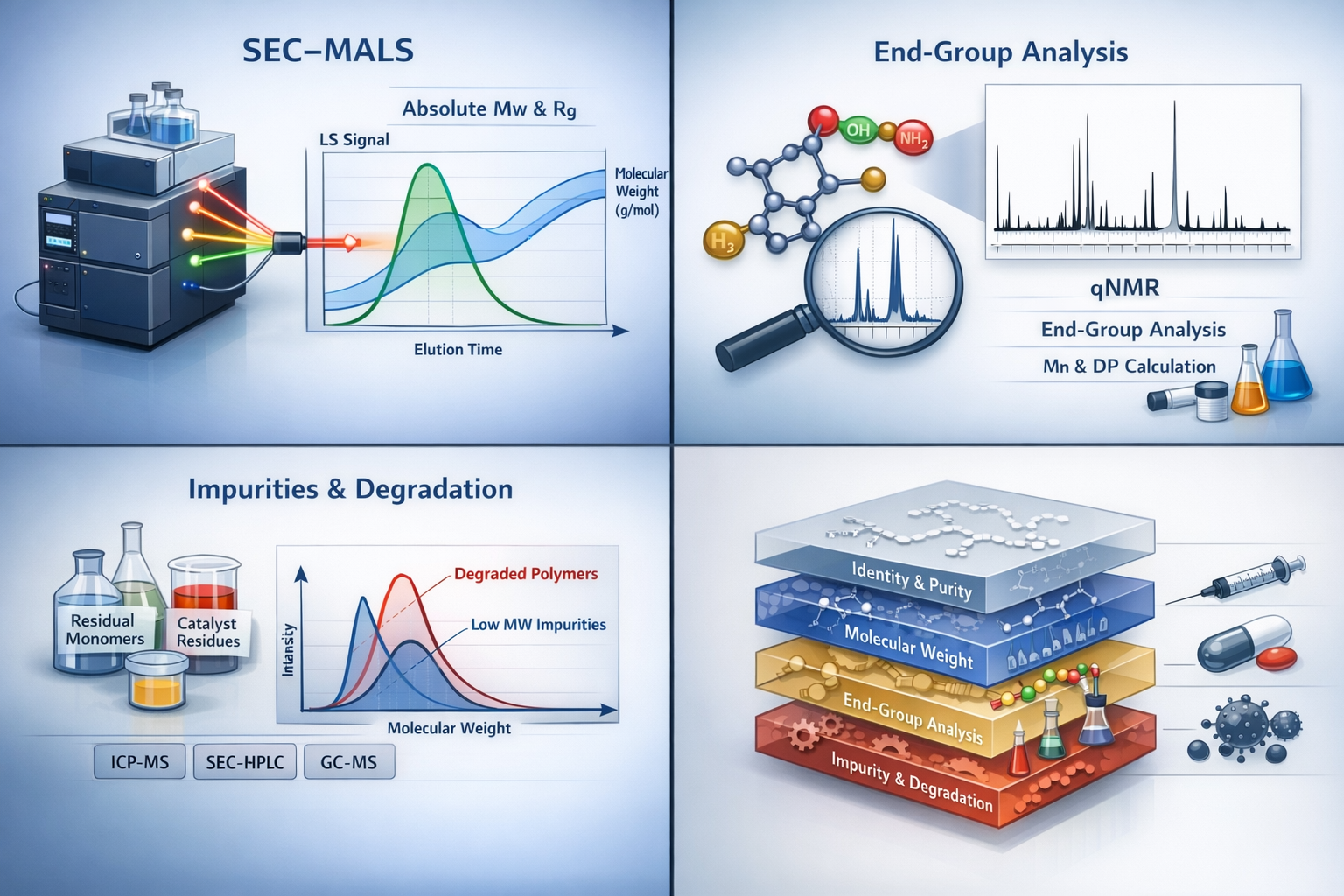

From identity and impurity profiling to molecular weight distribution, absolute Mw determination, and end-group characterization, each analytical layer contributes to a deeper understanding of structure–property relationships.

As polymer architectures become more complex and regulatory expectations evolve, analytical strategies must move beyond basic specification testing toward comprehensive structural definition.

Absolute molecular weight determination, functionalization control, and impurity profiling are not isolated quality checks, they are elements of a risk-based CMC framework that supports reproducibility, scalability, and long-term product performance.

In polymer-based drug delivery, analytical precision is directly linked to therapeutic reliability so be sure to have the right support at your side.
